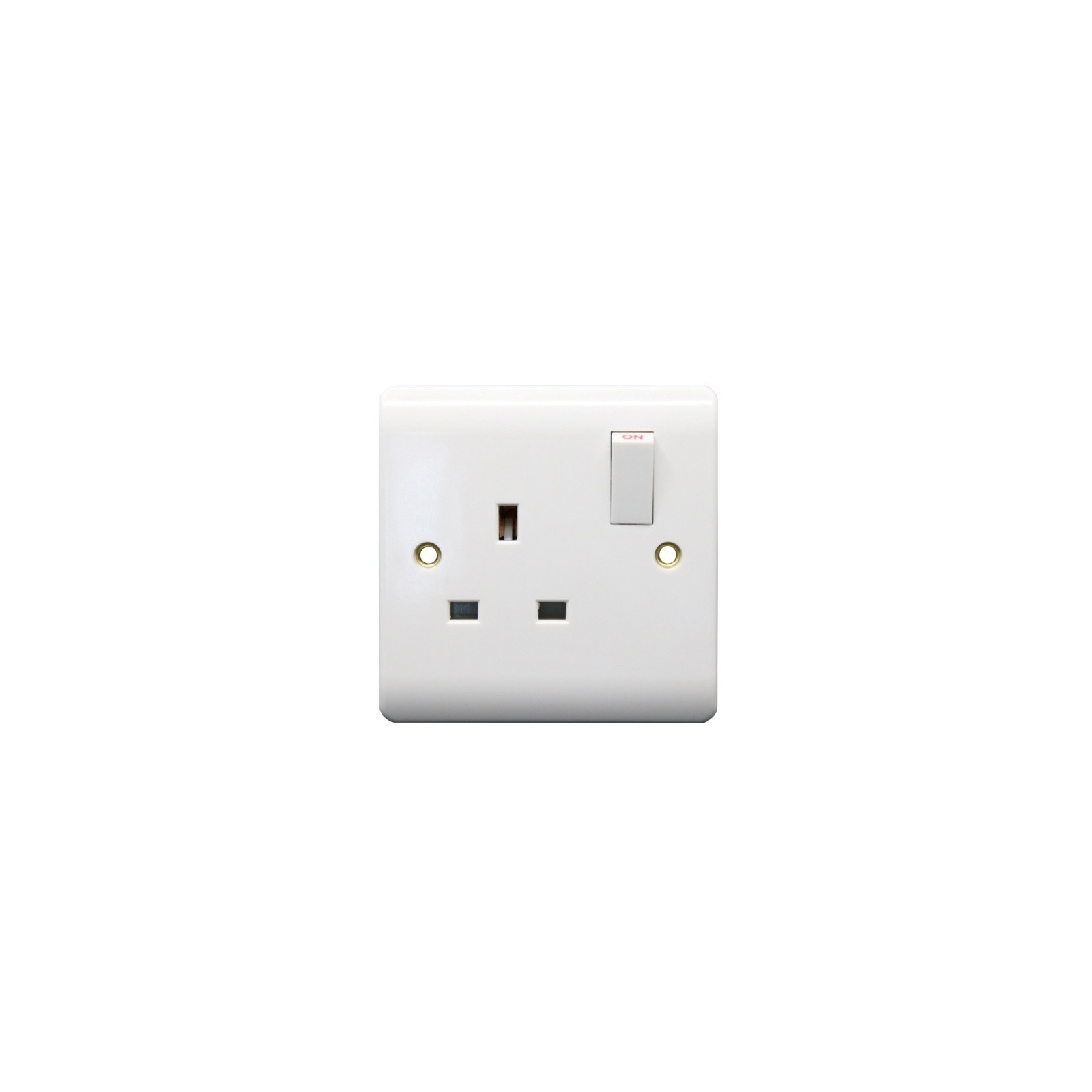

Securlec 1 Gang Switched Socket Double Pole Round Edge

86 x 86mm
13 Amp
Associated standards: BS 1363-2
Rated voltage: 250V
Rated current: 13A
Frequency: 50-60Hz
Wiring system: 2 pole
Min. switch contact gap: >1.2 mm
Ambient operating temperature: -5 to 40C (24hour average not exceeding25C)
Degree of protection: IP20
Terminal capacity: 3 x 2.5mm2 or 3 x 4mm2or 2 x 6mm2
Face plate material: urea-formaldehyde
Minimum wall box depth: 25
Nature of supply: AC
Fixing screws: M3.5x30mm
Max Installation Altitude 2000 meters
Heavily embossed terminal marking for clear terminal identification
Top access, Large angled terminals make wiring easier and quicker
Dual earth terminals
Only one size screwdriver required for installation
Fixing screws maintained by earth strap
Contoured to blend into the wall
Double pole switching
